GF Agie Charmilles Form E600 Erosion machine

Show in original language

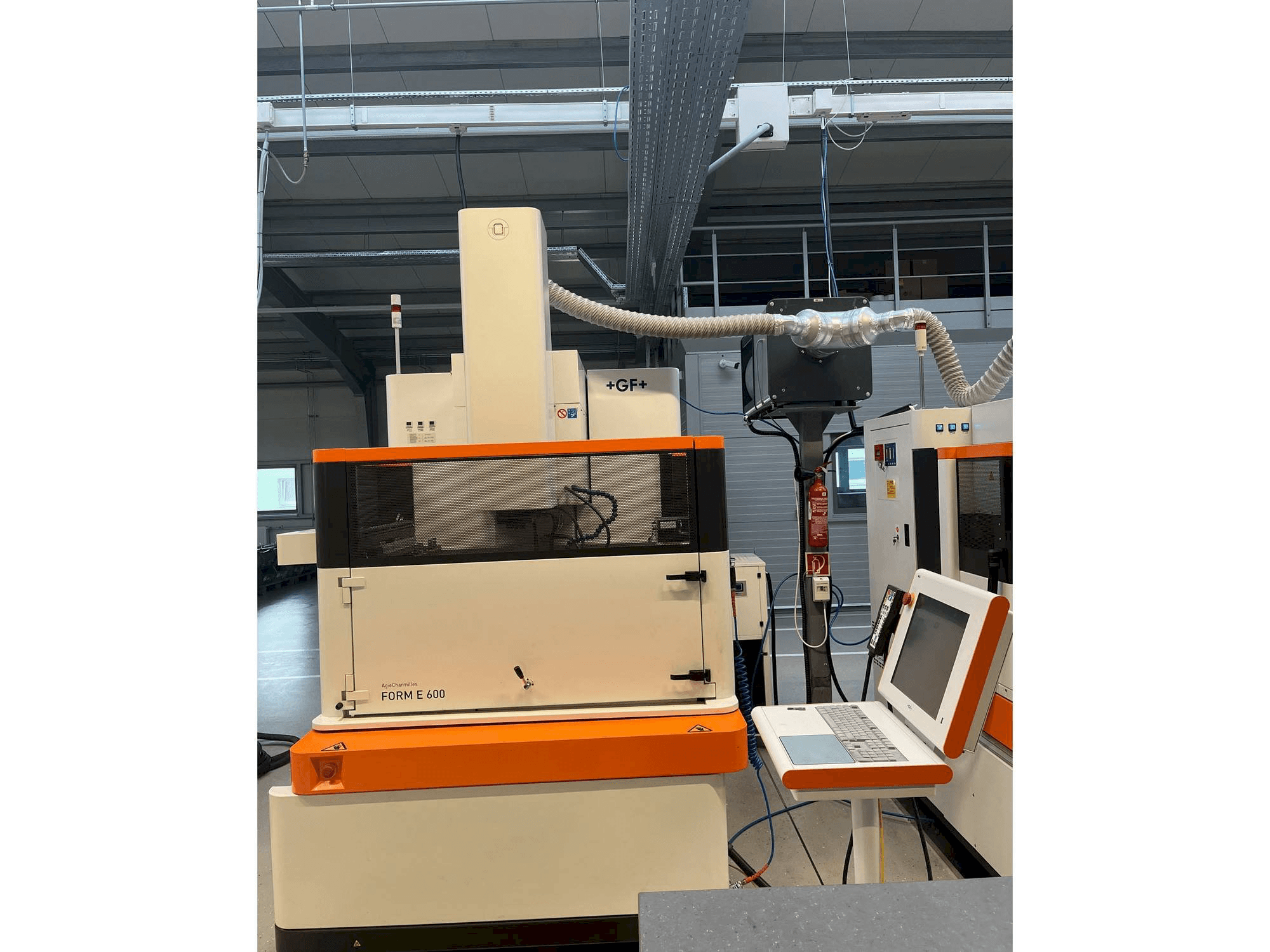

This GF Agie Charmilles Form E600 Erosion machine was manufactured in the year 2018 in China. It is equipped with a GF AC FORM HMI control unit.

Overview

brand: +GF+
year: 2018
MODEL: Agie Charmilles Form E600
production hours: 2000
application type: EDM
Location: Hungary
machine type: Die-Sinking EDM Machine

Technical Information - +GF+ Agie Charmilles Form E600

Dimensions

Machine Depth: 1600 mm
Machine Height: 2700 mm
Machine Weight: 4150 kg
Table Length: 800 mm
Table Load: 1000 kg
Table Width: 600 mm

Movement

X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 400 mm

Additional Information

Additional equipment

Control system: AC FORM HMI with 17" touch screen
Linear tool changer capacity: 6 electrodes / Max electrode size: 75 mm diameter, 280 mm length / 4-position electrode changer
Best surface finish: Ra = 0.2 μm
Erowa ITS-50 automatic chuck
Glass scales on X/Y axes
Fire protection system
Optimal ambient temperature: 20°C / Relative humidity: < 80%

Machine Benefits

Technical Machine Benefits

Positioning resolution: 0. 1 μm
Max workpiece size: 1000 x 700 x 400 mm
Dielectric tank capacity: 650 l
Generator current: 140 a
C-axis max electrode weight: 25 kg / c-axis max rotation speed: 80 rpm
Integrated c-axis
Filtration: 6 built-in filter cartridges
Power supply: 3 x 400v, 50/60 hz
Compressed air: 6-8 bar
Lan connection: 10/100 mbit/sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
